Standard Round Tubular Heater Diameters:

• 0.157in (4mm)


• 0.196in (5mm)

• 0.255in (6,5mm)

• 0.334in (8,5mm)

• 0.393in (10mm)


• 0.629in (16mm)


at desired lengths...

Standard Square Section Tubular Heaters:

Square section heating elements provide more heating performance over standard round tubular heating elements. Mostly preferred in heating of manifolds, plates etc.

• 0,236in X 0,236in (6x6mm)


• 0,314in X 0,314in (8x8mm)


• Single/Double Ended options are available


• Optional built-in Thermocouple (only single ended heaters)

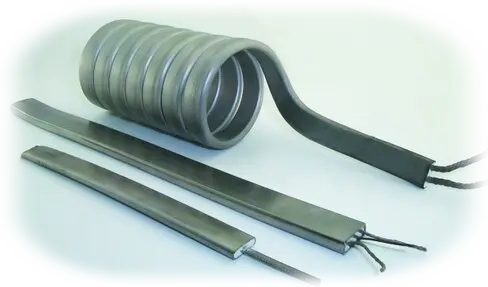

Standard Rectangular Section Tubular Heaters:

Rectangular (flat) heating elements with more surface area, provides more heating performance over standard round tubular heating elements, especially for immersion or air heating applications.

• 0,689in X 0,235in (17,5mm X 6mm)

• 0,689in X 0,256in (17,5mm X 6,5mm)

• 1in X 0,235in (25,4mm X 6mm)

• 1in X 0,256in (25,4 X 6,5mm),

• 1,5in X 0,314in (38mm X 8mm)

• Single/Double Ended options are available

• Optional built-in Thermocouple (type J or K)
• 1-Phase or 3-Phase options
